PRODUCT GROUP
Dry Coolers
Cools water or a water-glycol mixture in medium and large process cooling and air conditioning systems.
- Capacity
- 122,6 – 661,4 kW
- Fin spacing
- 2,5 mm
- Fluid
- Su · su-glikol
Series
Each series is designed for a different installation, volume and operating temperature; the final capacity and fin spacing are settled during selection.

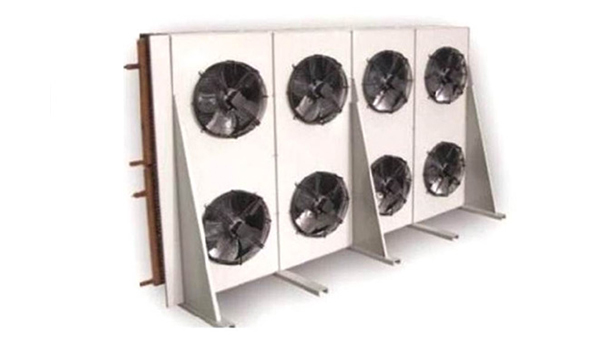

Standard Type
The standard series, in vertical and horizontal casings.
- Layout
- Dik · yatık

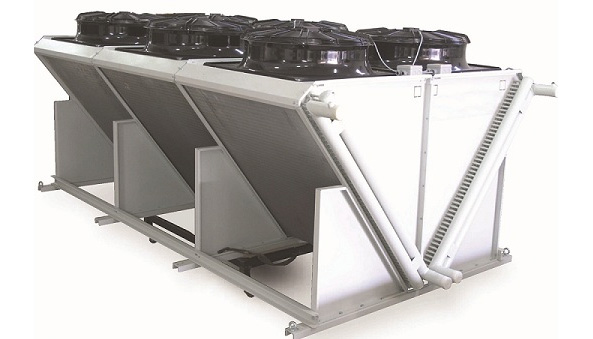

V-Type Coolers
More coil surface on the same footprint; for large-capacity process lines.
- Layout
- V tipi

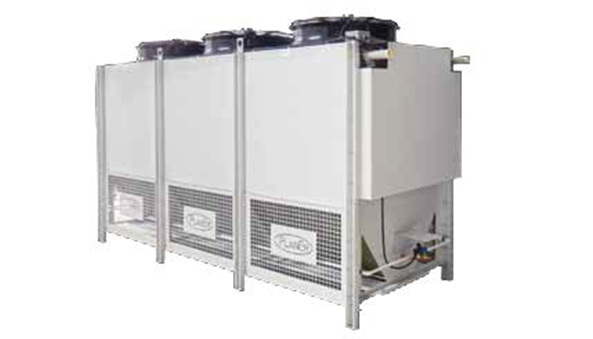

Evaporative Dry Coolers
Adiabatic pre-cooling by misting onto a honeycomb pad or a mesh: holds the capacity at high ambient temperatures.
Technical specifications
- Heat exchanger
- Alüminyum kanatlı, bakır borulu
- Fin spacing
- 2,5 mm
- Fan
- Tek sıra en fazla 1×5 · çift sıra 2×5
- Fan motor
- IP54 · izolasyon sınıfı F
- Header
- Çelik; hava alma valfi ve boşaltma tapalı
- Casing
- Elektrostatik toz boyalı galvanizli çelik sac
- Standard colour
- RAL 7044
- Fluid
- Su ve çeşitli oranlarda su-glikol karışımı
- Standards
- EN 1048 · Eurovent
- Noise measurement
- EN 13487 · 10 m
- Layout
- Dik · yatık · V tipi
Operating note Precautions must be taken against the risk of freezing in winter: a water-glycol (brine) mixture is used instead of water. The freezing temperatures for each mixing ratio are given in the table in the catalogue.
Material options
- Epoxy-coated aluminium fin
- Fully epoxy-coated coil
- Copper fin
- Rifled tube
Options and accessories
- Adiabatic / evaporative cooling system
- Fan speed control
- EC fan
- Electrical panel
- Measuring instruments
- Anti-vibration mounts
Model selection
This page describes the series platform; the model number is set by the capacity. There are two ways — read the table yourself, or enter your conditions into the selection tool. If you are not sure, send us the dimensions and we will run the calculation together.
Catalogue
The model list and the capacity and dimension tables are in this family's catalogue. You can use the table for the selection, or send us the dimensions and we will run the calculation together.
PDF · 2,2 MB · 8 pages
Selection tool
Enter the capacity, the ambient temperature and the regime; it lists the matching models. It is a separate application and opens in a new tab.
