PRODUCT GROUP
Water and Steam Coils
Coils used in small, medium and large air conditioning systems and in special industrial processes.
- Fin spacing
- 1,8 – 4 mm
- Copper tube
- 9,52 / 12,7 / 15,875 mm
- Die size
- 4035 · 3228 · 2522
Series
Each series is designed for a different installation, volume and operating temperature; the final capacity and fin spacing are settled during selection.

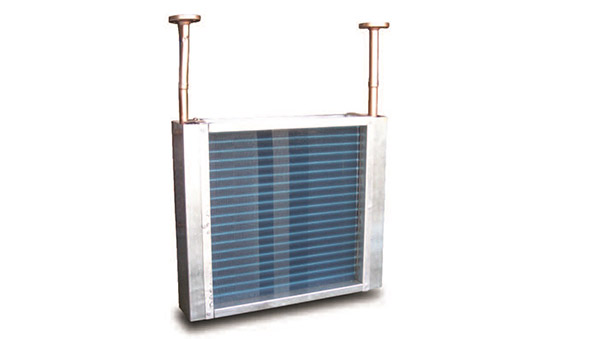

Steam Coils
For lines heated with steam; the heavier wall thickness is chosen against the pressurised steam.
- Wall thickness
- 0,70 mm
- Shipping
- Basınçsız

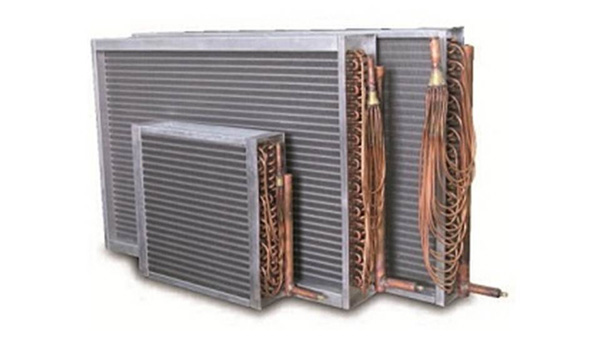

Direct Expansion Coils
For lines where the refrigerant evaporates inside the coil. The only series shipped under pressure.
- Wall thickness
- 0,35 / 0,40 mm
- Shipping
- 5 bar basınç altında

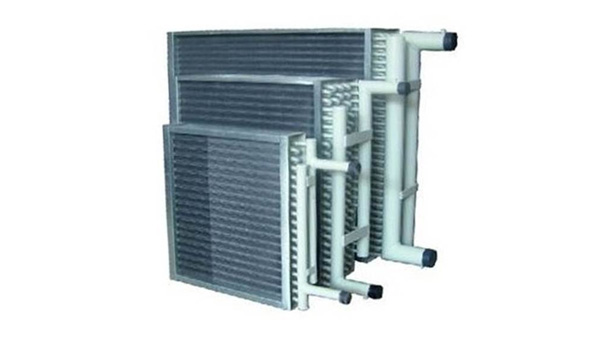

Hot and Chilled Water Coils
For the hot and chilled water circuits in air handling units; in three separate wall thicknesses.
- Wall thickness
- 0,35 / 0,40 / 0,50 mm
- Shipping
- Basınçsız

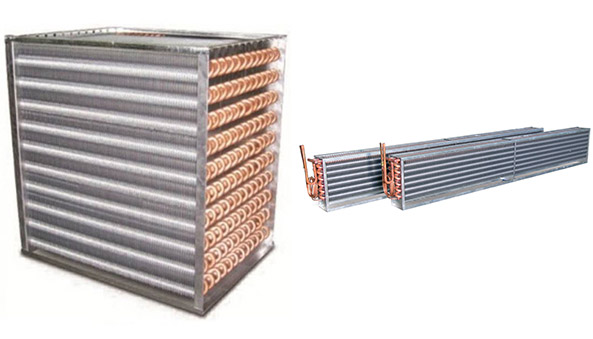

OEM Type
For manufacturers having coils built for their own equipment; dimensions and connections to your drawing.
- Wall thickness
- 0,70 mm
- Shipping
- Basınçsız
Technical specifications
- Die size
- 4035 · 3228 · 2522
- Copper tube
- 9,52 / 12,7 / 15,875 mm
- Fin spacing
- 1,8 – 4 mm
- Coating
- Galvaniz sac · alüminyum · paslanmaz çelik
- Test pressure
- 15 bar azot gazı
Model selection
This page describes the series platform; the model number is set by the capacity. There are two ways — read the table yourself, or enter your conditions into the selection tool. If you are not sure, send us the dimensions and we will run the calculation together.
Catalogue
The model list and the capacity and dimension tables are in this family's catalogue. You can use the table for the selection, or send us the dimensions and we will run the calculation together.
PDF · 1,5 MB · 8 pages
Selection tool
Enter the capacity, the ambient temperature and the regime; it lists the matching models. It is a separate application and opens in a new tab.
planer.proselector.net
Are you making a selection from this group?
Send us the room volume, the product type and the operating temperature, and we will prepare the right model and circuit layout.
